AD9235BRU-40

analog-to-digital converter, –0.3 to +3.9 V, sop, Offset Binary, Twos Complement Data Format

Rated 5 Rating 5 | reviews | Write a review

Price:: US $4.00~4.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $4.00~4.50

PartNumber:: AD9235BRU-40

Brand:: Analog Devices - ADI | Pack: SOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Maggie's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-22

From Other Seller

Part Number:AD9235BRU-40
US $4.00 - 4.50
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
RTL8309SC

US $1.50 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

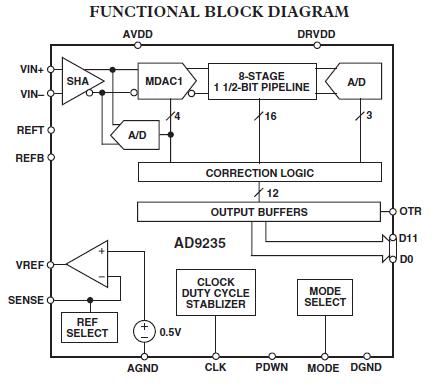

The AD9235BRU-40 is a monolithic, single 3 V supply, 12-bit, 20/40/65 MSPS analog-to-digital converter. It features a high performance sample-and-hold amplifier (SHA) and voltage reference. The AD9235BRU-40 uses a multistage differential pipelined architecture with output error correction logic to provide 12-bit accuracy at 20/40/65 MSPS data rates and guarantee no missing codes over the full operating temperature range. The applications of the AD9235BRU-40 include Ultrasound Equipment, IF Sampling in Communications Receivers, Battery-Powered Instruments, Hand-Held Scopemeters, Low Cost Digital Oscilloscopes.

Parametrics

AD9235BRU-40 absolute maximum ratings: (1)AVDD: –0.3 to +3.9 V; (2)DRVDD: –0.3 to +3.9 V; (3)AGND: –0.3 to +0.3 V; (4)AVDD: –3.9 to +3.9 V; (5)Digital Outputs: –0.3 to DRVDD + 0.3 V; (6)CLK, MODE: –0.3 to AVDD + 0.3 V; (7)VIN+, VIN–: –0.3 to AVDD + 0.3 V; (8)VREF: –0.3 to AVDD + 0.3 V; (9)SENSE: –0.3 to AVDD + 0.3 V; (10)REFB, REFT: –0.3 to AVDD + 0.3 V; (11)PDWN: –0.3 to AVDD + 0.3 V; (12)Operating Temperature: –40 to +85 ℃; (13)Junction Temperature: 150 ℃; (14)Lead Temperature (10 sec): 300 ℃; (15)Storage Temperature: –65 to +150 ℃.

Features

AD9235BRU-40 features: (1)Single 3 V Supply Operation (2.7 V to 3.6 V); (2)SNR = 70 dBc to Nyquist at 65 MSPS; (3)SFDR = 85 dBc to Nyquist at 65 MSPS; (4)Low Power: 300 mW at 65 MSPS; (5)Differential Input with 500 MHz Bandwidth; (6)On-Chip Reference and SHA; (7)DNL = ±0.4 LSB; (8)Flexible Analog Input: 1 V p-p to 2 V p-p Range; (9)Offset Binary or Twos Complement Data Format; (10)Clock Duty Cycle Stabilizer.
