Product Summary
The 8403901CA is a dual 4-input positive-NAND gate. It contains two independent 4-input NAND gates.
Parametrics
8403901CA absolute maximum ratings: (1)Supply voltage range: –0.5 to 7 V; (2)Input clamp current: ±20 mA at VI < 0 or VI > VCC; (3)Output clamp current: ±20 mA at VO < 0; (4)Continuous output current: ±25 mA at VO = 0 to VCC, Continuous current through VCCor GND: ±50 mA; (5)Package thermal impedance: D package 86 ℃/W, N package 80 ℃/W, NS package 76 ℃/W, PW package 113 ℃/W; (6)Storage temperature range: –60 to 150 ℃.
Features
8403901CA features: (1)Wide Operating Voltage Range of 2 V to 6 V; (2)Outputs Can Drive Up To 10 LSTTL Loads; (3)Low Power Consumption, 20-mA Max ICC; (4)Typical tpd = 8 ns; (5)±4-mA Output Drive at 5 V; (6)Low Input Current of 1 mA Max.

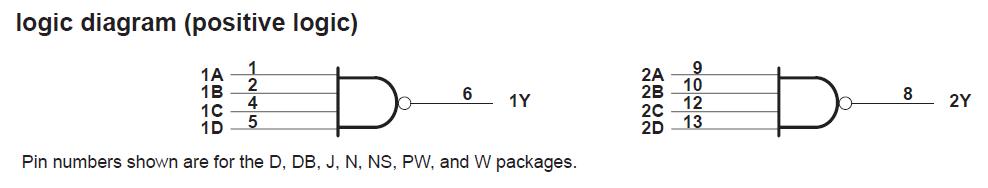

Diagrams
 |
