Product Summary
The 1N5620JANTX is a voidless-hermetically-sealedstandard recovery glass rectifier. The applications of the 1N5620JANTX are Standard recovery 1 Amp rectifiers 200 to 1000 V, Military and other high-reliability applications, General rectifier applications including bridges, half-bridges, catch diodes, High forward surge current capability, Extremely robust construction, Low thermal resistance, Controlled avalanche with peak reverse power capability.
Parametrics
1N5620JANTX absolute maximum ratings: (1)junction and storage temperature:-65℃ to +200℃; (2)thermal resistance:38℃/W junction to lead at 3/8 inch(10mm) lead length from body; (3)thermal impedance:4.5℃/W @ 10ms heating time; (4)average rectified forward current:1.0Amps @ Ta=55℃ and 0.75Amps @ 8.0ms half-sine; (5)solder temperatures:260℃ for 10s(maximum).
Features
1N5620JANTX features: (1)Popular JEDEC registered 1N5614 to 1N5622 series; (2)Voidless hermetically sealed glass package; (3)Triple-Layer Passivation; (4)Internal “Category I” Metallurgical bonds; (5)Working Peak Reverse Voltage 200 to 1000 Volts; (6)JAN, JANTX, JANTXV, and JANS available per MIL-Low thermal resistancePRF-19500/427; (7)Surface mount equivalents also available in a squarecapabilityend-cap MELF configuration with “US” suffix.

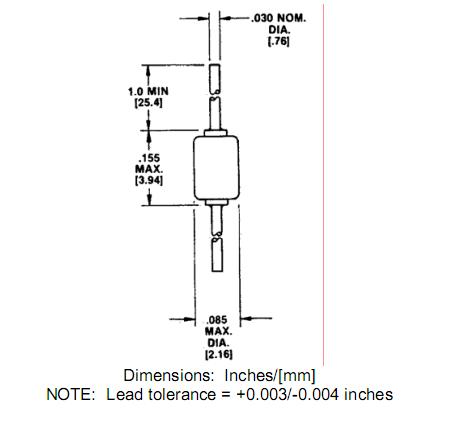

Diagrams
 |
