Product Summary
The Z84C3006PEC is a counter/timer circuit. The Z84C3006PEC is programmed by system software for a broad range of counting an timing applications. The four independently programmable channels of the Z84C3006PEC satisfy common microcomputer system requirements for event counting, interrupt and interval timing, and general clock rate generation. System design of the Z84C3006PEC is simplified because the CTC connects directly to both the Z80 CPU and the Z80 SIO with no additional logic. In large systems, address decoders and buffers may be required.
Parametrics
Z84C3006PEC absolute maximum ratings: (1)voltage on VCC with respect to VSS: -0.3V to 7.0V; (2)voltage on all inputs with respect to VSS: -0.3V to VCC+0.3V; (3)storage temperature: -65 to 150℃.
Features
Z84C3006PEC features: (1)four independently programmable counter/timer channels, each with a readable downcounter and a selectable 16 or 256 prescaler. Downcounters are reloaded automatically at zero count; (2)selectable positive or negative trigger initates timer operation; (3)three channels have zero count/timer outputs capable of driving darlington transistors; (4)NMOS version ofr cost sensitive performance solutions; (5)CMOS version for the designs requiring low power consumption; (6)interfaces directly to the Z80 CPU or for baud rate generation; (7)standard Z80 family daisy-chain interrupt structure provides fully vectored, prioritized interrupts without external logic. The CTC may also be used as an interrupt controller.

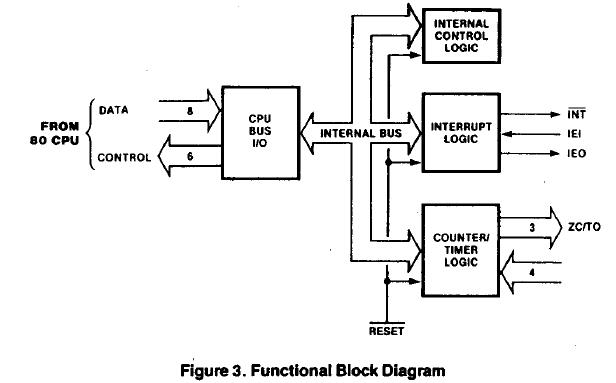

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 Z84C3006PEC |
ZiLOG |
Microprocessors (MPU) 6MHz CMOS CTC XT |
Data Sheet |
Negotiable |
|
||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||
|
Z84C0006PEC |
ZiLOG |
Microprocessors (MPU) 6MHz Z80 CMOS CPU XT |
Data Sheet |
Negotiable |
|
||||||||||
|
Z84C0008VEG |
ZiLOG |
Microprocessors (MPU) 8MHz Z80 CMOS CPU XT |
Data Sheet |
|
|
||||||||||
|
Z84C0020FEC |
ZiLOG |
Microprocessors (MPU) 20MHz CMOS CPU XTEMP |
Data Sheet |
Negotiable |
|
||||||||||
|
Z84C0020PEC |
ZiLOG |
Microprocessors (MPU) 20MHz CMOS CPU XTEMP |
Data Sheet |
Negotiable |
|
||||||||||
|
Z84C0010PEC |
ZiLOG |
Microprocessors (MPU) 10MHz CMOS CPU XTEMP |
Data Sheet |
Negotiable |
|
||||||||||
 |
Z84C1500ZCO |
ZiLOG |
Development Boards & Kits - Other Processors Z84C1500ZCO Kit |
Data Sheet |
Negotiable |
|
||||||||||
