TL431ACD

regulator diode, SOP, 37 V, –100 to +150 mA, Temperature Compensated

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.20~0.30 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.20~0.30

PartNumber:: TL431ACD

Brand:: Maxim Integrated Products - Maxim | Pack: SOP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Maggie's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-24

From Other Seller

Part Number:TL431ACD
US $0.20 - 0.30
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
FM31256-G

US $2.40 - 4.20 / Piece
(0) Remove
Quantity:

piece

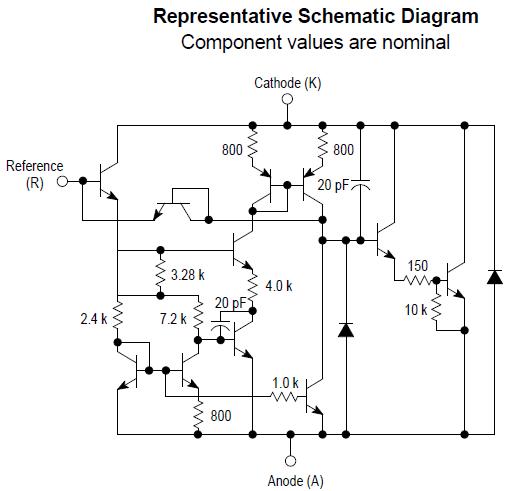

Product Summary

The TL431ACD integrated circuit is a three–terminal programmable shunt regulator diode. These monolithic IC voltage references operate as a low temperature coefficient zener which is programmable from Vref to 36 V with two external resistors. The TL431ACD exhibits a wide operating current range of 1.0 mA to 100 mA with a typical dynamic impedance of 0.22 W. The characteristics of TL431ACD make them excellent replacements for zener diodes in many applications such as digital voltmeters, power supplies, and op amp circuitry. The 2.5 V reference makes it convenient to obtain a stable reference from 5.0 V logic supplies, and since the TL431ACD operates as a shunt regulator, it can be used as either a positive or negative voltage reference.

Parametrics

TL431ACD absolute maximum ratings: (1)Cathode to Anode Voltage: 37 V; (2)Cathode Current Range, Continuous: –100 to +150 mA; (3)Reference Input Current Range, Continuous: –0.05 to +10 mA; (4)Operating Junction Temperature: 150 ℃; (5)Operating Ambient Temperature Range: 0 to +70 ℃; (6)Storage Temperature Range: –65 to +150 ℃; (7)Total Power Dissipation @ TA = 25℃: Derate above 25 ℃ Ambient Temperature, D, LP Suffix Plastic Package 0.70 W, P Suffix Plastic Package 1.10 W, DM Suffix Plastic Package 0.52 W; (8)Total Power Dissipation @ TC = 25℃: Derate above 25℃ Case Temperature, D, LP Suffix Plastic Package 1.5 W, P Suffix Plastic Package 3.0 W.

Features

TL431ACD features: (1)Programmable Output Voltage to 36 V; (2)Voltage Reference Tolerance: ±0.4%, Typ @ 25℃ (TL431B); (3)Low Dynamic Output Impedance, 0.22 Ω Typical; (4)Sink Current Capability of 1.0 mA to 100 mA; (5)Equivalent Full-range Temperature Coefficient of 50 ppm/℃ Typical; (6)Temperature Compensated for Operation over Full Rated Operating Temperature Range; (7)Low Output Noise Voltage.
