Product Summary
The SN74LVC1G04DCKR single inverter gate is designed for 1.65-V to 5.5-V VCC operation. The SN74LVC1G04DCKR performs the Boolean function Y=A. NanoStar and NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package. The SN74LVC1G04DCKR is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
Parametrics
SN74LVC1G04DCKR absolute maximum ratings: (1)Supply voltage range: –0.5 to 6.5 V; (2)Input voltage range: –0.5 to 6.5 V; (3)Voltage range applied to any output in the high-impedance or power-off state: –0.5 to 6.5 V; (4)Voltage range applied to any output in the high or low state: –0.5 to VCC + 0.5 V; (5)Input clamp current: –50 mA at VI < 0; (6)Output clamp current: –50 mA at VO < 0; (7)Continuous output current: ±50 mA; (8)Continuous current through VCC or GND: ±100 mA; (9)Storage temperature range: –65 to 150 ℃.
Features
SN74LVC1G04DCKR features: (1)Available in the Texas Instruments NanoStar. and NanoFree. Packages; (2)Ioff Supports Partial-Power-Down Mode Operation; (3)Supports 5-V VCC Operation; (4)Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II; (5)Inputs Accept Voltages to 5.5 V; (6)Max tpd of 3.3 ns at 3.3 V; (7)ESD Protection Exceeds JESD 22: 2000-V Human-Body Model (A114-A), 200-V Machine Model (A115-A), 1000-V Charged-Device Model (C101); (8)Low Power Consumption, 10-mA Max I CC; (9)±24-mA Output Drive at 3.3 V.

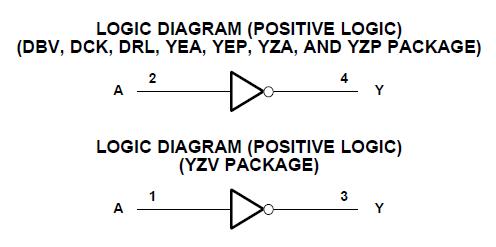

Diagrams
