Product Summary

The 1SS389 is a silicon epitaxial schottky barrier type TOSHIBA diode. It has high speed switching application.

Parametrics

1SS389 maximum ratings: (1)Maximum (peak) reverse Voltage VRM: 15 V; (2)Reverse voltage VR: 10 V; (3)Maximum (peak) forward current IFM: 200 mA; (4)Average forward current IO: 100 mA; (5)Surge current (10ms) IFSM: 1 A; (6)Power dissipation P: 150 mW; (7)Junction temperature Tj: 125 ℃; (8)Storage temperature range Tstg: -55 to 125 ℃; (9)Operating temperature range Topr: -40 to 100 ℃.

Features

1SS389 features: (1)Small package; (2)Low forward voltage: VF = 0.23V (typ.) @IF = 5mA.

Diagrams

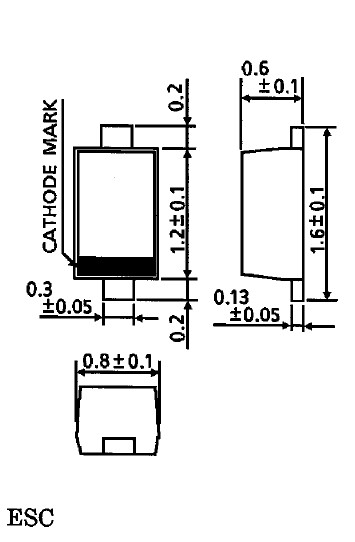

1SS389 package circuit
