Product Summary
The PDZ9.1B is a Low-power general purpose voltage regulator diode in a small plastic SMD SOD323 package.
Parametrics
PDZ9.1B absolute maximum ratings: (1)continuous forward current: 200 mA; (2)total power dissipation Tamb = 25 ℃: 400 mW; (3)storage temperature: -65 to +150 ℃; (4)junction temperature: 150 ℃.
Features
PDZ9.1B features: (1)Total power dissipation: max. 400 mW; (2)Small plastic package suitable for surface mounted design; (3)Wide variety of voltage ranges: nom. 2.4 to 36 V (E24 range).

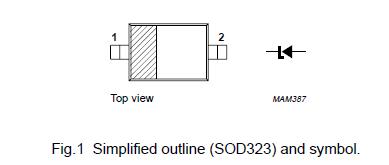

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() PDZ9.1B T/R |
![]() NXP Semiconductors |
![]() Zener Diodes DIODE ZENER 2 PCT TAPE-7 |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() PDZ9.1B,115 |
![]() NXP Semiconductors |
![]() Zener Diodes DIODE ZENER 2 PCT |
![]() Data Sheet |
![]()
|
|
