Product Summary
The MM74C154N one of sixteen decoder is a monolithic complementary MOS (CMOS) integrated circuit constructed with N- and P-channel enhancement transistors. The MM74C154N is provided with two strobe inputs, both of which must be in the logical “0” state for normal operation. If either strobe input is in the logical “1” state, all 16 outputs will go to the logical “1” state. To use the product as a demultiplexer, one of the strobe inputs serves as a data input terminal, while the other strobe input must be maintained in the logical “0” state. The information of the MM74C154N will then be transmitted to the selected output as determined by the 4-line input address.
Parametrics
MM74C154N absolute maximum ratings: (1)Voltage at Any Pin -0.3V to VCC: + 0.3V; (2)Operating Temperature Range: -40℃ to +85℃; (3)Storage Temperature Range: -65℃ to +150℃; (4)Maximum VCC Voltage: 18V; (5)Power Dissipation Dual-In-Line: 700 mW; (6)Small Outline: 500 mW.
Features
MM74C154N features: (1)Supply voltage range: 3V to 15V; (2)Tenth power TTL compatible: Drive 2 LPTTL loads; (3)High noise margin: 1V guaranteed; (4)High noise immunity: 0.45 VCC (typ.).

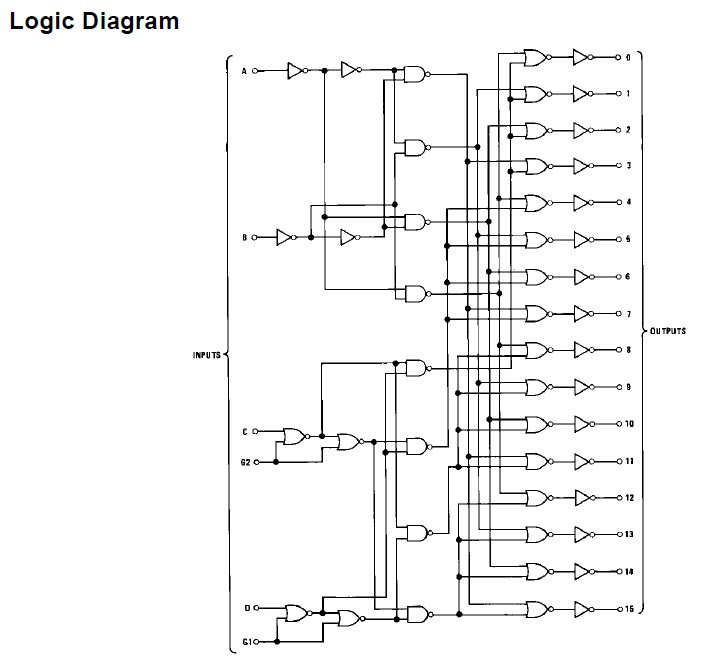

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MM74C154N |
Fairchild Semiconductor |
Encoders, Decoders, Multiplexers & Demultiplexers Decode/Demultiplexer |
Data Sheet |
