Product Summary
The DTC144EM-T2L is a NPN resistor-equipped transistors. R1 = 47 k ohm, R2 = 47 k ohm. The application of the DTC144EM-T2L are: General purpose switching and amplification; Inverter and interface circuits; Circuit driver.
Parametrics
DTC144EM-T2L maximum ratings: (1)Current Rating: 30.0 mA; (2)Voltage Rating (DC): 50.0 V; (3)Lead-Free Status: Lead Free; (4)Mounting Type: Surface Mount; (5)Packaging: Cut Tape (CT), Tape & Reel (TR), Tape; (6)RoHS: Compliant.
Features
DTC144EM-T2L features: (1)Built-in bias resistors; (2)Simplified circuit design; (3)Reduction of component count; (4)Reduced pick and place costs.

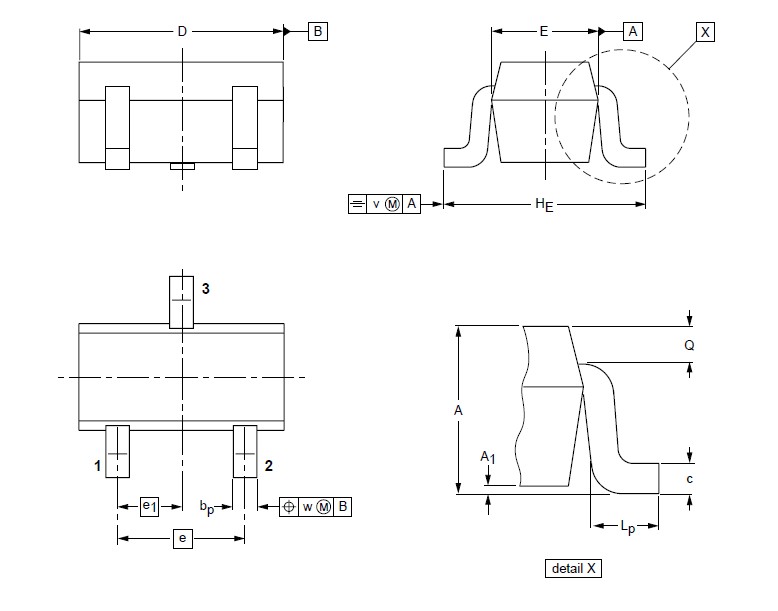

Diagrams
![]() |
