Product Summary
The EP4CGX150CF23C7N is a FPGA device, which extends the Cyclone FPGA series leadership in providing the market’s lowest-cost, lowest-power FPGAs, now with a transceiver variant. Cyclone IV devices are targeted to high-volume, cost-sensitive applications, enabling system designers to meet increasing bandwidth requirements while lowering costs.
Parametrics
EP4CGX150CF23C7N specifications: (1)Number Of Logic Elements/cells: 149760; (2)Number Of Labs/clbs: 9360 ; (3)Total Ram Bits: 6480000; (4)Number Of I/O: 270 ; (5)Voltage - Supply: 1.16 V ~ 1.24 V; (6)Mounting Type: Surface Mount ; (7)Operating Temperature: 0℃ ~ 85℃; (8)Package / Case: 484-FBGA ; (9)Family Name: Cyclone IV; (10)Number Of Logic Blocks/elements: 149760 ; (11)# I/os (max): 270; (12)Operating Supply Voltage (typ): 1.2V ; (13)Logic Cells: 149760; (14)Ram Bits: 6635520 ; (15)Operating Supply Voltage (min): 1.16V; (16)Operating Supply Voltage (max): 1.24V ; (17)Operating Temp Range: 0℃ to 85℃.
Features
EP4CGX150CF23C7N features: (1)6K to 155K logic elements; (2)Up to 6 Mb of embedded memory; (3)Up to 360 18 × 18 multipliers for DSP processing intensive applications; (4)Protocol bridging applications for under 1.5 W total power Data rates up to 3.125 Gbps; (5)8B10B encoder/decoder; (6)8-bit or 10-bit PMA to PCS interface; (7)Byte serializer/deserializer; (8)Word aligner; (9)Rate matching FIFO; (10)TX bit slipper for CPRI; (11)Electrical idle.

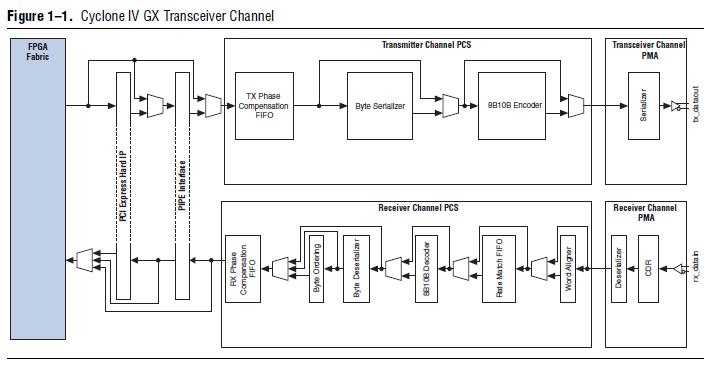

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 EP4CGX150CF23C7N |
|
IC CYCLONE IV FPGA 150K 484FBGA |
Data Sheet |
|
|
||||||
