Product Summary

The 1SS226 is a silicon epitaxial planar type of Toshiba diode. It is widely used in ultra high speed switching application.

Parametrics

1SS226 maximum ratings: (1)Maximum (peak) reverse voltage: 85 V; (2)Reverse voltage: 80 V; (3)Maximum (peak) forward current: 300 mA; (4)Average forward current: 100 mA; (5)Surge current (10ms): 2)A; (6)Power dissipation: 150 mW; (7)Junction temperature: 125 ℃; (8)Storage temperature range: 55~125 ℃.

Features

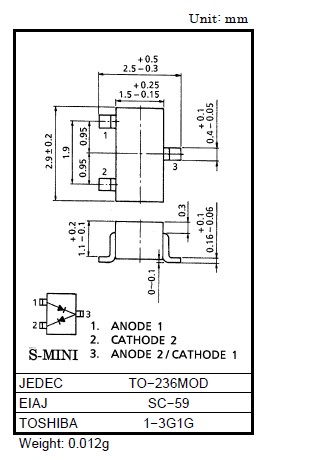

1SS226 features: (1)Small package : SC-59; (2)Low forward voltage : VF (3) = 0.9V (typ.); (3)Fast reverse recovery time : trr = 1.6ns (typ.); (4)Small total capacitance : CT = 0.9pF (typ.).
