Product Summary
The AQV214E is a GU (General Use)-E Type 1-Channel (Form A) Type.The typical applications of the AQV214E are: High-speed inspection machines; Telephone equipment; Data communicationequipment; Computer.
Parametrics
AQV214E absolute maximum ratings: (1)LED forward current IF: 50 mA; (2)LED reverse voltage VR: 3 V; (3)Peak forward current IFP: 1 A f = 100 Hz, Duty factor = 0.1%; (4)Power dissipation Pin :75 mW; (5)Power dissipation Pout: 500 mW; (6)Total power dissipation PT: 550 mW; (7)Temperature limits Operating Topr: –40℃ to +85℃; (8)Storage Tstg: –40 ℃ to +100 ℃.
Features
AQV214E features: (1)Controls low-level analog signals; (2)Control with low-level input signals; (3)Controls various types of loads such as relays, motors, lamps and solenoids; (4)Optical coupling for extremely high isolation; (5)Eliminates the need for a counter electromotive force protection diode in the drive circuits on the input side; (6)Stable on resistance; (7)Low-level off state leakage current; (8)Eliminates the need for a power supply to drive the power MOSFET; (9)Low thermal electromotive force.

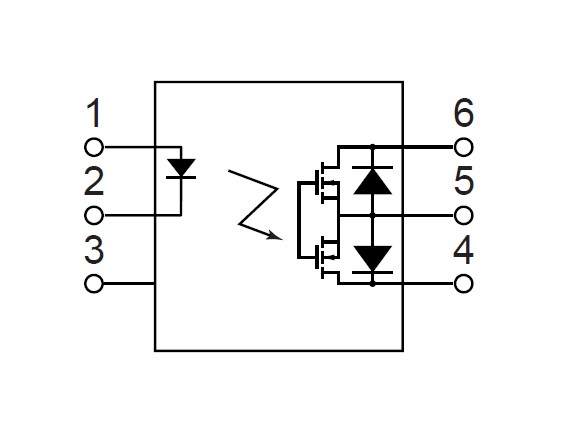

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() AQV214E |
![]() Panasonic Electric Works |
![]() Solid State Relays 120MA 400V 6PIN SPST |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() AQV214EA |
![]() Panasonic Electric Works |
![]() Solid State Relays 120MA 400V 6PIN SPST |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() AQV214EAX |
![]() Panasonic Electric Works |
![]() Solid State Relays RELAY OPTO SPST 120MA 6 SMD |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() AQV214EAZ |
![]() Panasonic Electric Works |
![]() Solid State Relays 400v 120mA DIP Form A Norm-Open |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() AQV214EH |
![]() Panasonic Electric Works |
![]() Solid State Relays 120MA 400V 6PIN SPST |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() AQV214EHA |
![]() Panasonic Electric Works |
![]() Solid State Relays 120MA 400V SPST |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() AQV214EHAX |
![]() Panasonic Electric Works |
![]() Solid State Relays 400v 120mA DIP Form A Norm-Open |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() AQV214EHAZ |
![]() Panasonic Electric Works |
![]() Solid State Relays RELAY OPTO SPST 120MA 6 SMD |
![]() Data Sheet |
![]()
|
|
