Product Summary

The AD9280ARSZ is a monolithic, single supply, 8-bit, 32 MSPS analog-to-digital converter with an on-chip sample-and-hold amplifier and voltage reference. The AD9280ARSZ uses a multistage differential pipeline architecture at 32 MSPS data rates and guarantees no missing codes over the full operating temperature range.

Parametrics

AD9280ARSZ absolute maximum ratings: (1)AVDD: –0.3 to +6.5 V; (2)DRVDD: –0.3 to +6.5 V; (3)AVSS: –0.3 to +0.3 V; (4)AVDD: –6.5 to +6.5 V; (5)MODE: –0.3 to AVDD + 0.3 V; (6)CLK: –0.3 to AVDD + 0.3 V; (7)Digital Outputs: –0.3 to DRVDD + 0.3 V; (8)AIN: –0.3 to AVDD + 0.3 V; (9)VREF: –0.3 to AVDD + 0.3 V; (10)REFSENSE: –0.3 to AVDD + 0.3 V; (11)REFTF, REFTB: –0.3 to AVDD + 0.3 V; (12)REFTS, REFBS: –0.3 to AVDD + 0.3 V; (13)Junction Temperature: +150 ℃; (14)Storage Temperature: –65 to +150 ℃; (15)Lead Temperature 10 sec: +300 ℃.

Features

AD9280ARSZ features: (1)CMOS 8-Bit 32 MSPS Sampling A/D Converter; (2)Pin-Compatible with AD876-8; (3)Power Dissipation: 95 mW (3 V Supply); (4)Operation Between +2.7 V and +5.5 V Supply; (5)Differential Nonlinearity: 0.2 LSB; (6)Power-Down (Sleep) Mode; (7)Three-State Outputs; (8)Out-of-Range Indicator; (9)Built-In Clamp Function (DC Restore); (10)Adjustable On-Chip Voltage Reference; (11)IF Undersampling to 135 MHz.

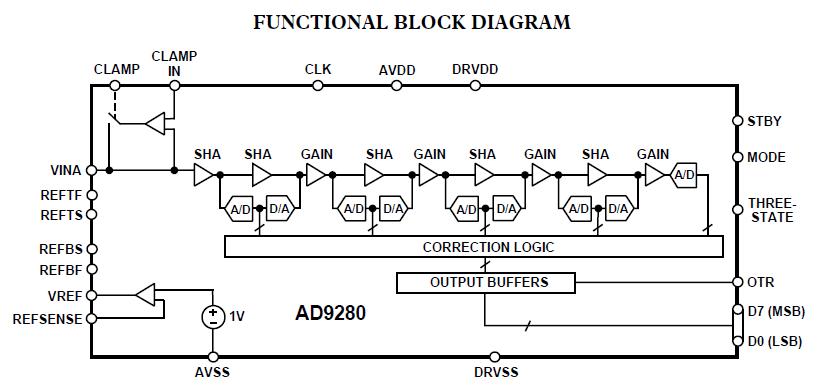

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD9280ARSZ
AD9280ARSZ

IC ADC CMOS 8BIT 32MSPS 28-SSOP
Data Sheet
0-1: $3.29
1-10: $2.94
10-100: $2.41
100-250: $2.18
250-500: $1.95
500-1000: $1.65
1000-2500: $1.57
AD9280ARSZRL
AD9280ARSZRL

IC ADC 8BIT CMOS 32MSPS 28SSOP
Data Sheet
0-1500: $1.65
