Product Summary

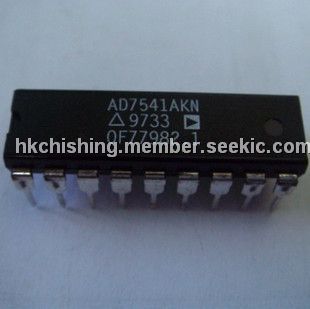

The AD7541AKN is a low cost, high performance 12-bit monolithic multiplying digital-to-analog converter. It is fabricated using advanced, low noise, thin film on CMOS technology and is available in a standard 18-lead DIP and in 20-terminal surface mount packages. The AD7541AKN uses laser wafer trimming to provide full 12-bit endpoint linearity with several new high performance grades.
Parametrics
AD7541AKN maximum ratings: (1)VDD to GND: +17 V; (2)VREF to GND: ±25 V; (3)VRFB to GND: ±25 V; (4)Digital Input Voltage to GND: –0.3 V to VDD + 0.3 V; (5)OUT 1, OUT 2 to GND: –0.3 V to VDD + 0.3 V; (6)Power Dissipation (Any Package) To +75℃: 450 mW; (7)Derates above +75℃: 6 mW/℃; (8)Operating Temperature Range: 0℃ to +70℃; (9)Storage Temperature: –65℃ to +150℃; (10)Lead Temperature (Soldering, 10 secs): +300℃.
Features
AD7541AKN features: (1)Improved Version of AD7541; (2)Full Four-Quadrant Multiplication; (3)12-Bit Linearity (Endpoint); (4)All Parts Guaranteed Monotonic; (5)TTL/CMOS Compatible; (6)Low Cost; (7)Protection Schottky Diodes Not Required; (8)Low Logic Input Leakage.

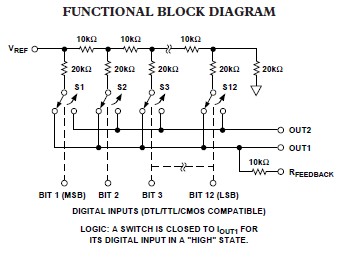

Diagrams
