AD694AR

monolithic current transmitter, sop, +36 V, Dual Supply Operation

Rated 5 Rating 5 | reviews | Write a review

Price:: US $5.00~6.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $5.00~6.00

PartNumber:: AD694AR

Brand:: Analog Devices - ADI | Pack: SOP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Maggie's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-22

From Other Seller

Part Number:AD694AR
US $5.00 - 6.00
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
Quantity:

piece

Product Summary

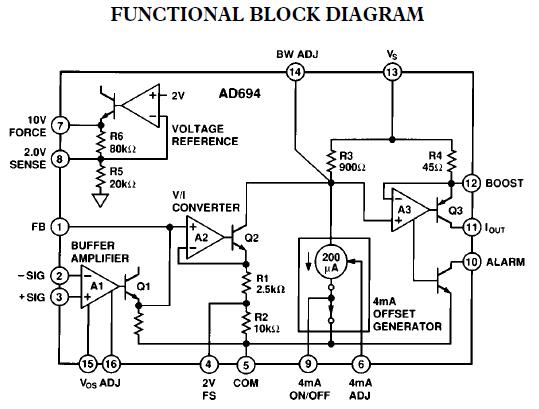

The AD694AR is a monolithic current transmitter that accepts high level signal inputs to drive a standard 4–20 mA current loop for the control of valves, actuators, and other devices commonly used in process control. The input signal of AD694AR is buffered by an input amplifier that can be used to scale the input signal or buffer the output from a current mode DAC. Precalibrated input spans of 0 V to 2 V and 0 V to 10 V are selected by simple pin strapping; other spans of AD694AR may be programmed with external resistor.

Parametrics

AD694AR absolute maximum ratings: (1)Supply Voltage: +36 V; (2)VS to IOUT: +36 V; (3)Input Voltage, (Either Input Pin 2 or 3): –0.3 V to +36 V; (4)Reference Short Circuit to Common: Indefinite; (5)Alarm Voltage, Pin 10: +36 V; (6)4 mA Adj, Pin 6: +1 V; (7)4 mA On/Off, Pin 9: 0 V to 36 V; (8)Storage Temperature Range: –65℃ to +125℃; (9)Lead Temperature, 10 sec Soldering: +300℃; (10)Maximum Junction Temperature: +150℃; (11)Maximum Case Temperature: Plastic Package (N, R): +125℃, Cerdip Package (Q): +125℃.

Features

AD694AR features: (1)4–20 mA, 0–20 mA Output Ranges; (2)Precalibrated Input Ranges: 0 V to 2 V, 0 V to 10 V; (3)Precision Voltage Reference Programmable to 2.000 V or 10.000 V; (4)Single or Dual Supply Operation; (5)Wide Power Supply Range: +4.5 V to +36 V; (6)Wide Output Compliance; (7)Input Buffer Amplifier; (8)Open-Loop Alarm; (9)Optional External Pass Transistor to Reduce Self-Heating Errors; (10)0.002% typ Nonlinearity.
