Product Summary
The 8405601CA is a dual d-type positive-edge-triggered flip-flop with clear and preset. It contains two independent D-type positive-edge-triggered flip-flops. A low level at the preset (PRE) or clear (CLR) inputs sets or resets the outputs, regardless of the levels of the other inputs.
Parametrics
8405601CA absolute maximum ratings: (1)Supply voltage range, VCC: -0.5 V to 7 V; (2)Input clamp current, IIK (VI < 0 or VI > VCC): ±20 mA; (3)Output clamp current, IOK (VO < 0 or VO > VCC): ±20 mA; (4)Continuous output current, IO (VO = 0 to VCC): ±25 mA; (5)Continuous current through VCC or GND: ±50 mA; (6)Package thermal impedance, θJA: D package: 86℃/W; DB package: 96℃/W; N package: 76℃/W; NS package: 76℃/W; PW package: 113℃/W; (7)Storage temperature range, Tstg: -65℃ to 150℃.
Features
8405601CA features: (1)Wide Operating Voltage Range of 2 V to 6 V; (2)Outputs Can Drive Up To 10 LSTTL Loads; (3)Low Power Consumption, 40-μA Max ICC; (4)Typical tpd = 15 ns; (5)±4-mA Output Drive at 5 V; (6)Low Input Current of 1 μA Max.

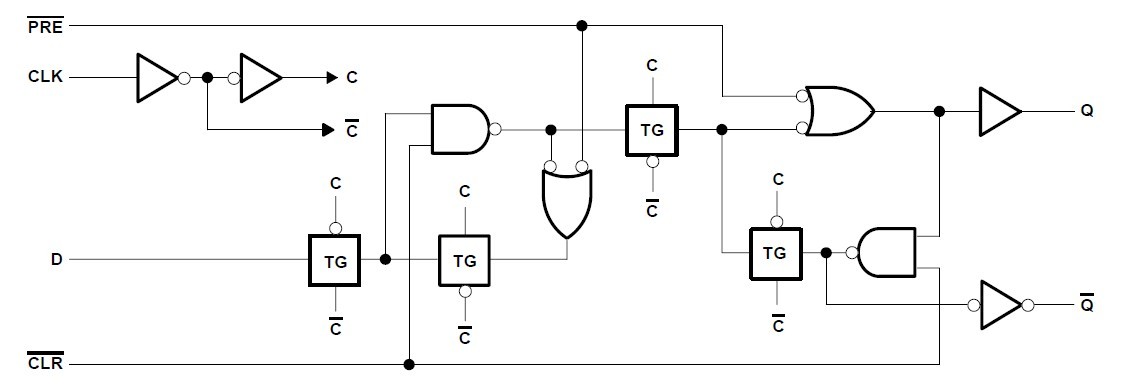

Diagrams
 |
