Product Summary
The 8403701CA is a quadruple 2-input positive-nand gate. It contains four independent 2-input NAND gates. They perform the Boolean function Y=A·B or Y=A+B in positive logic.
Parametrics
8403701CA absolute maximum ratings: (1)Supply voltage range, VCC: –0.5 V to 7 V; (2)Input clamp current, IIK (VI < 0 or VI > VCC): ±20 mA; (3)Output clamp current, IOK (VO < 0 or VO > VCC): ±20 mA; (4)Continuous output current, IO (VO = 0 to VCC): ±25 mA; (5)Continuous current through VCC or GND: ±50 mA; (6)Package thermal impedance, θJA: D package: 86℃/W, DB package: 96℃/W, N package: 80℃/W, NS package: 76℃/W, PW package: 113℃/W; (7)Storage temperature range, Tstg: –65℃ to 150℃.
Features
8403701CA features: (1)Wide Operating Voltage Range of 2 V to 6 V; (2)Outputs Can Drive Up To 10 LSTTL Loads; (3)Low Power Consumption, 20-μA Max ICC; (4)Typical tpd = 8 ns; (5)±4-mA Output Drive at 5 V; (6)Low Input Current of 1 μA Max.

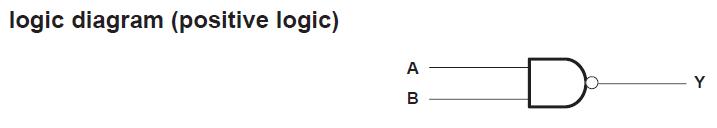

Diagrams
 |
