Product Summary
The 74F08PC is a Quad 2-Input AND Gate. This device contains four independent gates, each of which performs the logic AND function.
Parametrics
74F08PC absolute maximum ratings: (1)Storage Temperature: -65 to +150℃; (2)Ambient Temperature under Bias: -55 to +125℃; (3)Junction Temperature under Bias: -55 to +175℃; Plastic: -55 to +150℃; (4)VCC Pin Potential to Ground Pin: -0.5V to +7.0V; (5)Input Voltage: -0.5V to +7.0V; (6)Input Current: -30 mA to +5.0 mA; (7)Voltage Applied to Output in HIGH State (with VCC = 0V); (8)Standard Output: -0.5V to VCC; (9)TRI-STATE?Output: -0.5V to +5.5V; (10)Current Applied to Output in LOW State (Max): twice the rated IOL (mA); (11)ESD Last Passing Voltage (Min): 4000V.
Features
74F08PC features: (1)Guaranteed 4000V minimum ESD protection.

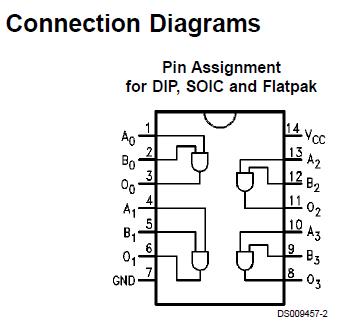

Diagrams
