Product Summary

The 1N4148 is a Small Signal Diode.

Parametrics

1N4148 absolute maximum ratings: (1)Maximum Repetitive Reverse Voltage: 100 V; (2)Average Rectified Forward Current: 200 mA; (3)Non-repetitive Peak Forward Surge Current: 1.0 A at Pulse Width = 1.0 second, 4.0 A at Pulse Width = 1.0 microsecond; (4)Storage Temperature Range: -65 to +200 ℃; (5)Operating Junction Temperature: 175 ℃.

Features

1N4148 electrical characteristics: (1)Breakdown Voltage: 100 V at IR = 100 μA, 75 V at IR = 5.0 μA; (2)Forward Voltage: 1.0 V at IF=10 mA; (3)Reverse Current: 25 nA at VR = 20 V, 50 μA at VR = 20 V, TA = 150℃, 5.0 μA at VR = 75 V; (4)Total Capacitance: 4.0 pF at VR = 0, f = 1.0 MHz; (5)Reverse Recovery Time: 4.0 ns at IF = 10 mA, VR = 6.0 V (60mA), 4.0 ns at Irr = 1.0 mA, RL = 100Ω.

Diagrams

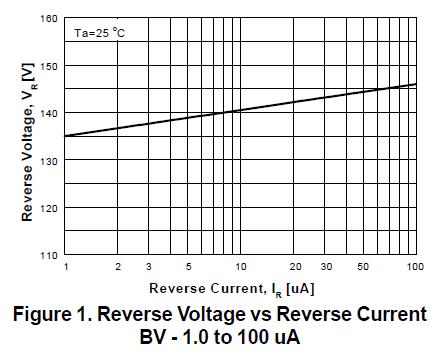

1N4148 Reverse Voltage

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
1N4148
1N4148
Taiwan Semiconductor
Diodes (General Purpose, Power, Switching) Gen Pur SMALL SIGNAL DIODE
Data Sheet
