TMS320DM642GDK600

DSP, BGA, –0.3 V to 4 V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $21.00~22.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $21.00~22.50

PartNumber:: TMS320DM642GDK600

Brand:: Texas Instruments - TI | Pack: BGA | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Maggie's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-24

From Other Seller

Part Number:TMS320DM642GDK600
US $21.00 - 22.50
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

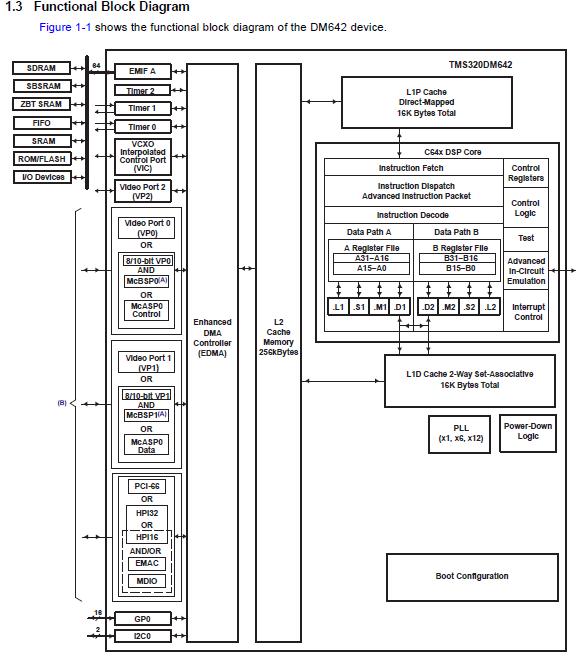

The TMS320DM642GDK600 DSP is the highest-performance fixed-point DSP generation in the TMS320C6000 DSP platform. The TMS320DM642GDK600 device is based on the second-generation high-performance, advanced VelociTI very-long-instruction-word (VLIW) architecture (VelociTI.2) developed by Texas Instruments (TI), making TMS320DM642GDK600 an excellent choice for digital media applications.

Parametrics

TMS320DM642GDK600 absolute maximum ratings: (1)Supply voltage ranges: –0.3 V to 4 V; (2)Input voltage ranges: (except PCI), VI: –0.3 V to 4 V, (PCI), VIP: –0.5 V to DVDD + 0.5 V; (3)Output voltage ranges: (except PCI), VO: –0.3 V to 4 V, (PCI), VOP: –0.5 V to DVDD + 0.5 V; (4)Operating case temperature ranges, TC: (default): 0℃ to 90℃, (A version) [A-500, A-600]: –40℃ to 105℃; (5)Storage temperature range, Tstg: –65℃ to 150℃; (6)Package Temperature Cycling: Temperature Range: –40℃ to 125℃, Number of Cycles: 500.

Features

TMS320DM642GDK600 features: (1)High-Performance Digital Media Processor; (2)VelociTI.2. Extensions to VelociTI Advanced Very-Long-Instruction-Word (VLIW) TMS320C64x DSP Core; (3)Instruction Set Features: Byte-Addressable (8-/16-/32-/64-Bit Data), 8-Bit Overflow Protection, Bit-Field Extract, Set, Clear; (4)Endianess: Little Endian, Big Endian; (5)L1/L2 Memory Architecture: 128K-Bit (16K-Byte) L1P Program Cache, 128K-Bit (16K-Byte) L1D Data Cache (2-Way Set-Associative).
