SN74AHC1G14DCKRG4

schmitt-trigger inverter gate, SOP, -0.5 V to 7 V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.30~0.50

PartNumber:: SN74AHC1G14DCKRG4

Brand:: Texas Instruments - TI | Pack: SOP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Maggie's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-24

From Other Seller

Part Number:SN74AHC1G14DCKRG4
US $0.30 - 0.50
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
HEF4093BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

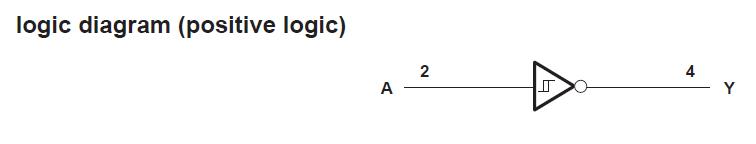

The SN74AHC1G14DCKRG4 is a single schmitt-trigger inverter gate. The SN74AHC1G14DCKRG4 contains one inverter gate. The device performs the Boolean function Y = A. The SN74AHC1G14DCKRG4 functions as an independent inverter gate, but because of the Schmitt action, gates may have different input threshold levels for positive- (VT+) and negative-going (VT-) signals.

Parametrics

SN74AHC1G14DCKRG4 absolute maximum ratings: (1)Supply voltage range, VCC: -0.5 V to 7 V; (2)Input voltage range, VI: -0.5 V to 7 V; (3)Output voltage range, VO: -0.5 V to VCC + 0.5 V; (4)Input clamp current, IIK (VI < 0): -20 mA; (5)Output clamp current, IOK (VO < 0 or VO > VCC): ±20 mA; (6)Continuous output current, IO (VO = 0 to VCC): ±25 mA; (7)Continuous current through VCC or GND: ±50 mA; (8)Package thermal impedance, θJA: DBV package: 206℃/W, DCK package: 252℃/W, DRL package: 142℃/W; (9)Storage temperature range, Tstg: -65℃ to 150℃.

Features

SN74AHC1G14DCKRG4 features: (1)Operating Range of 2 V to 5.5 V; (2)Max tpd of 10 ns at 5 V; (3)Low Power Consumption, 10-μA Max ICC; (4)±8-mA Output Drive at 5 V; (5)Latch-Up Performance Exceeds 250 mA Per JESD 17.
