Product Summary
The M24308/3-1F is a D-subminiature Metal Shell.
Parametrics
M24308/3-1F electrical characteristics: (1)Withstanding Voltage: Minimum 1250V RMS sea level ; (2)Current Rating: 5 Amps ; (3)Contact Resistance: 2.7 milliohms maximum ; (4)Insulation Resistance: 5000 megohms maximum (initial); 1000 megohms (minimum) after environmental testing.
Features
M24308/3-1F features: (1)Meets all MIL-C-24308 Class G specifications; (2)Offered in Crimp and Poke and Solder Cup and PCB vertical and right-angle; (3)Offered in 9, 15, 25, 37, and 50 position plugs and sockets except right-angle (9 to 37 positions); (4)Monoblock green diallyl phthalate insulator for improved electrical performance.

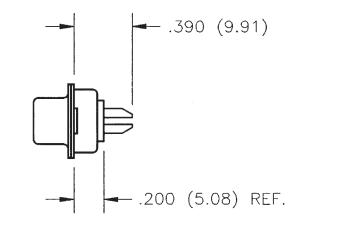

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 M24308/3-1F |
Cinch |
D-Sub Standard Connectors |
Data Sheet |
Negotiable |
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
M24308/1-14 |
Cinch |
D-Sub Standard Connectors |
Data Sheet |
Negotiable |
|
||||||||||||
 |
M24308/2-1 |
Cinch |
D-Sub Standard Connectors 9P STRT SOLDER PLUG |
Data Sheet |
|
|
||||||||||||
|
M24308/1-5 |
Cinch |
D-Sub Standard Connectors |
Data Sheet |
Negotiable |
|
||||||||||||
|
M24308/1-3F |
Cinch |
D-Sub Standard Connectors |
Data Sheet |
Negotiable |
|
||||||||||||
 |
M24308/23-10 |
TE Connectivity |
D-Sub Standard Connectors 1757830-4 |
Data Sheet |
|
|
||||||||||||
 |
M24308/23-27 |
TE Connectivity |
D-Sub Standard Connectors 1757836-3 |
Data Sheet |
|
|
||||||||||||
