Product Summary
The ICL8069BCSA is a 1.2V temperature-compensated voltage reference. It uses the bandgap principle to achieve excellent stability and low noise at reverse currents down to 50μA. Maxim’s ICL8069BCSA also features excellent stability, freedom from oscillation. The applications of the ICL8069BCSA include Analog-to-Digital Converters, Digital-to-Analog Converters, Threshold Detectors, Voltage Regulators, Portable Instruments.
Parametrics
ICL8069BCSA absolute maximum ratings: (1)Forward Current: 10mA; (2)Reverse Current: 10mA; (3)Power Dissipation: Limited by Max Forward/Reverse Current; (4)Storage Temperature Range: -65℃ to +150℃; (5)Operating Temperature Ranges: 0℃ to +70℃; (6)Lead Temperature (soldering, 10sec): +300℃.
Features
ICL8069BCSA features: (1)Temperature Coefficient Guaranteed to 10ppm/℃ max; (2)Low Bias Current: 50μA min; (3)Low Dynamic Impedance; (4)Low Reverse Voltage; (5)Low Cost.

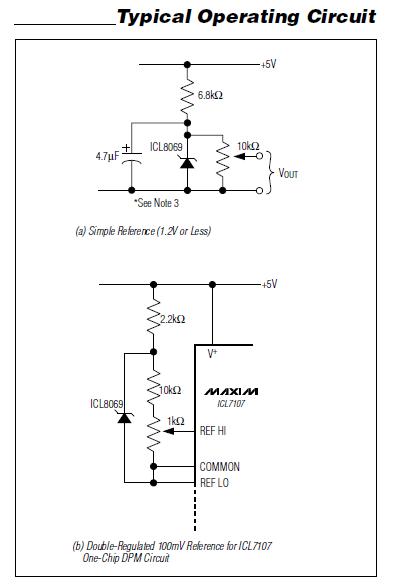

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 ICL8069BCSA |
Maxim Integrated Products |
Voltage & Current References |
Data Sheet |
Negotiable |
|
||||
 |
ICL8069BCSA+ |
Maxim Integrated Products |
Voltage & Current References |
Data Sheet |
Negotiable |
|
||||
|
ICL8069BCSA+T |
Maxim Integrated Products |
Voltage & Current References |
Data Sheet |
Negotiable |
|
||||
|
ICL8069BCSA-T |
Maxim Integrated Products |
Voltage & Current References |
Data Sheet |
Negotiable |
|
||||
