Product Summary

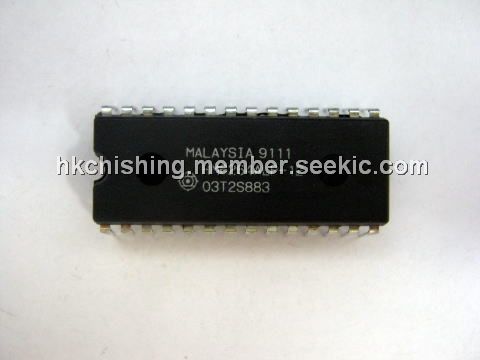

The HM6264ALP-12 is a 8192-word × 8-bit High Speed CMOS Static RAM.
Parametrics
HM6264ALP-12 absolute maximum ratings: (1)Terminal voltage, VT: –0.5 to +7.0 V; (2)Power dissipation, PT: 1.0 W; (3)Operating temperature, Topr: 0 to +70℃; (4)Storage temperature, Tstg: –55 to +125℃; (5)Storage temperature (under bias), Tbias: -10 to +85℃.
Features
HM6264ALP-12 features: (1)Low-power standby: 0.1 mW (typ); 10 μW (typ) L-/LL-version; (2)Low power operation: 15 mW/MHz (typ); (3)Fast access time: l00/120/150 ns (max); (4)Single +5 V supply; (5)Completely static memory: No clock or timing strobe required; (6)Equal access and cycle time; (7)Common data input and output, three-state output; (8)Directly TTL compatible: All inputs and outputs; (9)Battery back up operation capability (L-/LL-version).

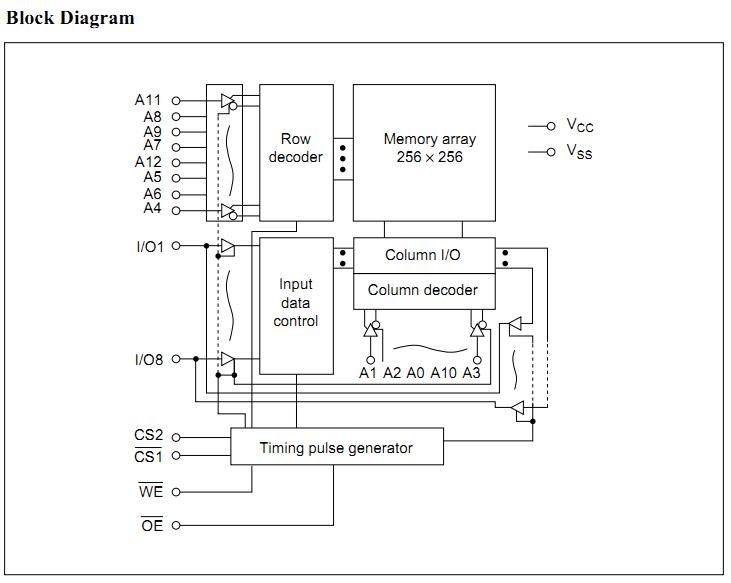

Diagrams
 |
