Product Summary

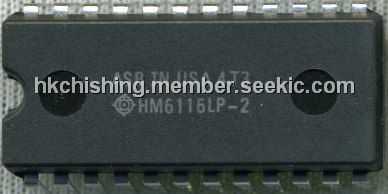

The HM6116LP-2 is a 2048-word x 8-bit high speed CMOS static RAM.
Parametrics
HM6116LP-2 absolute maximum ratings: (1)voltage on any pin relative to VSS: -0.5 to +7.0 V; (2)operating temperature: 0 to +70℃; (3)storage temperature: -55 to +125℃; (4)storage temperature under bias: -10 to +85℃; (5)power dissipation: 1.0 W.
Features
HM6116LP-2 features: (1)single 5V supply; (2)high speed: fast access time: 120ns/150ns/200ns max; (3)low power standby and low power operation; (4)completely static RAM: no clock or timing strobe required; (5)directly TTL compatible: all input and output; (6)pin out compatible with standard 16K EPROM/MASK ROM; (7)equal access and cycle time; (8)capability of battery back up operation.
Diagrams
 |
