Product Summary
The DS8830N is a dual differential line driver that also performs the dual four-input NAND or dual four-input AND function. TTL (Transistor-Transistor-Logic) multiple emitter inputs allow this line driver to interface with standard TTL systems. The differential outputs of DS8830N are balanced and are designed to drive long lengths of coaxial cable, strip line, or twisted pair transmission lines with characteristic impedances of 50W to 500W. The differential feature of the output eliminates troublesome ground-loop errors normally associated with single-wire transmissions.
Parametrics
DS8830N absolute maximum ratings: (1)VCC: 7.0V; (2)Input Voltage: 5.5V; (3)Storage Temperature: -65℃ to +150℃; (4)Lead Temperature (Soldering, 4 sec.): 260℃; (5)Output Short Circuit Duration (125℃): 1 second; (6)Maximum Power Dissipation at 25℃: Cavity Package: 1308 mW, Molded Package: 1207 mW.
Features
DS8830N features: (1)Single 5V power supply; (2)Diode protected outputs for termination of positive and negative voltage transients; (3)Diode protected inputs to prevent line ringing; (4)High speed; (5)Short circuit protection.

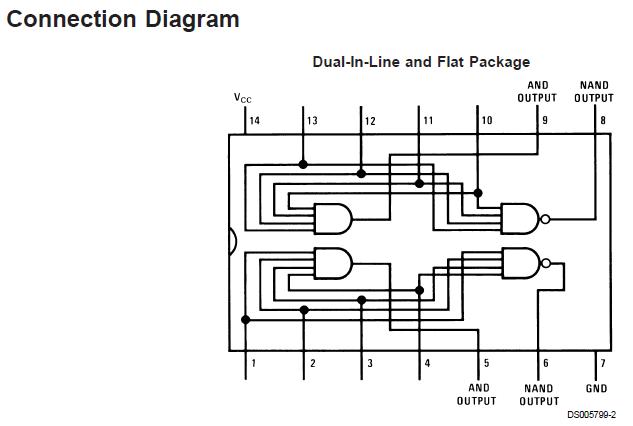

Diagrams
 |
