Product Summary

The AD8021ARZ is a very high performance, high speed voltage feedback amplifier that can be used in 16-bit resolution systems. It is designed to have low voltage and current noise (2.1 nV/√Hz typ and 2.1 pA/√Hz typ) while operating at the lowest quiescent supply current (7 mA @ ±5 V) among today’s high speed, low noise op amps. The applications of the AD8021ARZ include ADC Preamp and Driver, Instrumentation Preamp: Active Filters, Portable Instrumentation, Line Receivers: Precision Instruments, Ultrasound Signal Processing, High Gain Circuits.

Parametrics

AD8021ARZ absolute maximum ratings: (1)Supply Voltage: 26.4 V; (2)Power Dissipation: Observed Power Derating Curves; (3)Input Voltage (Common-Mode): ±VS ± 1 V; (4)Differential Input Voltage: ±0.8 V; (5)Differential Input Current: ±10 mA; (6)Output Short-Circuit Duration: Observed Power Derating Curves; (7)Storage Temperature: –65℃ to +125℃; (8)Operating Temperature Range: –40℃ to +85℃; (9)Lead Temperature Range (Soldering, 10 sec): 300℃.

Features

AD8021ARZ features: (1)Low Noise: 2.1 nV/√Hz Input Voltage Noise, 2.1 pA/√Hz Input Current Noise; (2)Custom Compensation: Constant Bandwidth from G = –1 to G = –10; (3)High Speed: 200 MHz (G = –1), 190 MHz (G = –10); (4)Low Power: 34 mW or 6.7 mA Typ for 5 V Supply; (5)Output Disable Feature, 1.3 mA; (6)Low Distortion: –93 dB Second Harmonic, fC = 1 MHz, –108 dB Third Harmonic, fC = 1 MHz; (7)DC Precision: 1 mV Max Input Offset Voltage, 0.5 μV/℃ Input Offset Voltage Drift; (8)Wide Supply Range, 5 V to 24 V; (9)Low Price; (10)Small Packaging: Available in SOIC-8 and MSOP-8s.

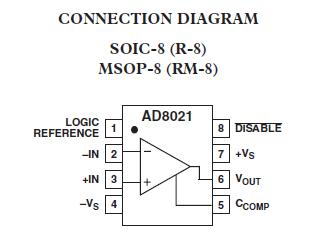

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD8021ARZ
AD8021ARZ

IC OPAMP VF LN LP LDIST 8SOIC
Data Sheet
0-1: $2.03
1-10: $1.81
10-100: $1.48
100-250: $1.34
250-500: $1.20
500-1000: $1.01
1000-2500: $0.96
AD8021ARZ-REEL
AD8021ARZ-REEL

IC OPAMP VF LN LP LDIST 8SOIC
Data Sheet
0-2500: $0.96
AD8021ARZ-REEL7
AD8021ARZ-REEL7

IC OPAMP VF LN LP LDIST 8SOIC
Data Sheet
0-1: $2.08
1-10: $1.87
10-25: $1.68
25-100: $1.53
100-250: $1.38
250-500: $1.24
