Product Summary

The AD504LH analog device is an IC operational amplifier, which provides ultra-low drift and extremely high gain, comparable to that of modular amplifiers, for precision applications.

Parametrics

AD504LH absolute maximum ratings: (1)input offset voltage: 0.5 mV max (0.2mV typ) at initial offset, RS≤10k; (2)input offset current: 10 nA max @TA=25℃; (3)input bias current: 80nA max; (4)input impedance: 1.3 MΩ; (5)input voltage range: 110 dB min; (6)power supply: ±3.0 mA max; (7)operating temperature range: 0 to +70℃; (8)storage temperature range: -65 to + 150℃.

Features

AD504LH features: (1)low VOS: 500 μV max; (2)high gain: 106 min; (3)low drift: 0.5 μV/℃ max; (4)free of popcorn noise.

Diagrams

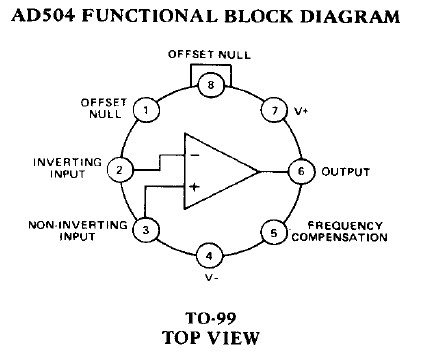

AD504LH block diagram
